upgrade for accord S84

[choon meng]

good day to all sifu, i have a 2000 accord 2.0 sohc accord. lately the gear box start to complain me. i think is time to chage it. but i have a idea to upgrade the half cut engine like h22a + mt . any good work shop to modify and which half cut is suitable for this chasis?



[bien335]

hai bro.

where's your location?

there are a few options to upgrade your CF9/0/1/2

CF4 SiR-T : F20B + T2T4 LSD
BB6 SiR: H22A
BB6 SiR S-Spec: H22A + LSD (red top, 220PS)
CL1 Euro R: H22A + T2W4 LSD (red top, 220PS)

All the above are OBD-II, manual.

If you want to retain the automatic (since your chassis is automatic), you can go for:

CF4 SiR: F20B (tiptronic)
BB6 SiR: H22A (tiptronic)
CH9 SiR: H23A (tiptronic)

you can opt for the OBD-I H22A's from either the BB1/4 Preludes or CD6/8/CF2 Accords. But none are tiptronic.



[choon meng]

thank you bien335, i'm in k.l. area. any wiring or engine mounting problem with half cut above? any workshop recommend?



[bien335]

wiring comes with the halfcut, so no issues.

drop by our forum www.myhavoc.net or our facebook page Log In | Facebook for more info and help.

I'm in JB, so I couldnt offer any insights, although there are many KLites who can.



[choon meng]

s84 + H22A underconstruction!!



[pretender]

pics on ur build thread pls.



[choon meng]

the project will start after raya lah. will keep update!!



[bien335]

tiptronic?

good luck!

another project. cant wait.



[choon meng]

BAD NEWS ...
FROM THOSE PART DISASSEMBLE FROM BOTH CHASIS. IT IS NOTING MUCH ARE COMPATIBLE.
THE THING CAN USED FROM THE EURO R CAN USE IN S84 ARE VERY LITTLE. ONLY THE ENGINE, GEAR BOX DISC BRAKE SYSTEM..
OTHERS MAIN THING LIKE DRIVE SHAFT ALSO CAN NOT USE , MAYBE TO CUSTOM MADE FOR IT!!
ECU ALSO NOT USE, ELECTRIC POWER STEERING SYSTEM CAN NOT USE, SUSPENSION & UPPER LOWER ARM + KNUCKLE CAN NOT USE
CROSSMEMBER + STABILIZER BAR CAN NOT USE
DASH BOARD (OF COURSE) CAN NOT USE
RESTRUCTURE POWER STEERING PUMP..ETC ETC...



[pretender]

BAD NEWS ...
FROM THOSE PART DISASSEMBLE FROM BOTH CHASIS. IT IS NOTING MUCH ARE COMPATIBLE.
THE THING CAN USED FROM THE EURO R CAN USE IN S84 ARE VERY LITTLE. ONLY THE ENGINE, GEAR BOX DISC BRAKE SYSTEM..
OTHERS MAIN THING LIKE DRIVE SHAFT ALSO CAN NOT USE , MAYBE TO CUSTOM MADE FOR IT!!
ECU ALSO NOT USE, ELECTRIC POWER STEERING SYSTEM CAN NOT USE, SUSPENSION & UPPER LOWER ARM + KNUCKLE CAN NOT USE
CROSSMEMBER + STABILIZER BAR CAN NOT USE
DASH BOARD (OF COURSE) CAN NOT USE
RESTRUCTURE POWER STEERING PUMP..ETC ETC...

Which halfcut model did you get?



[choon meng]

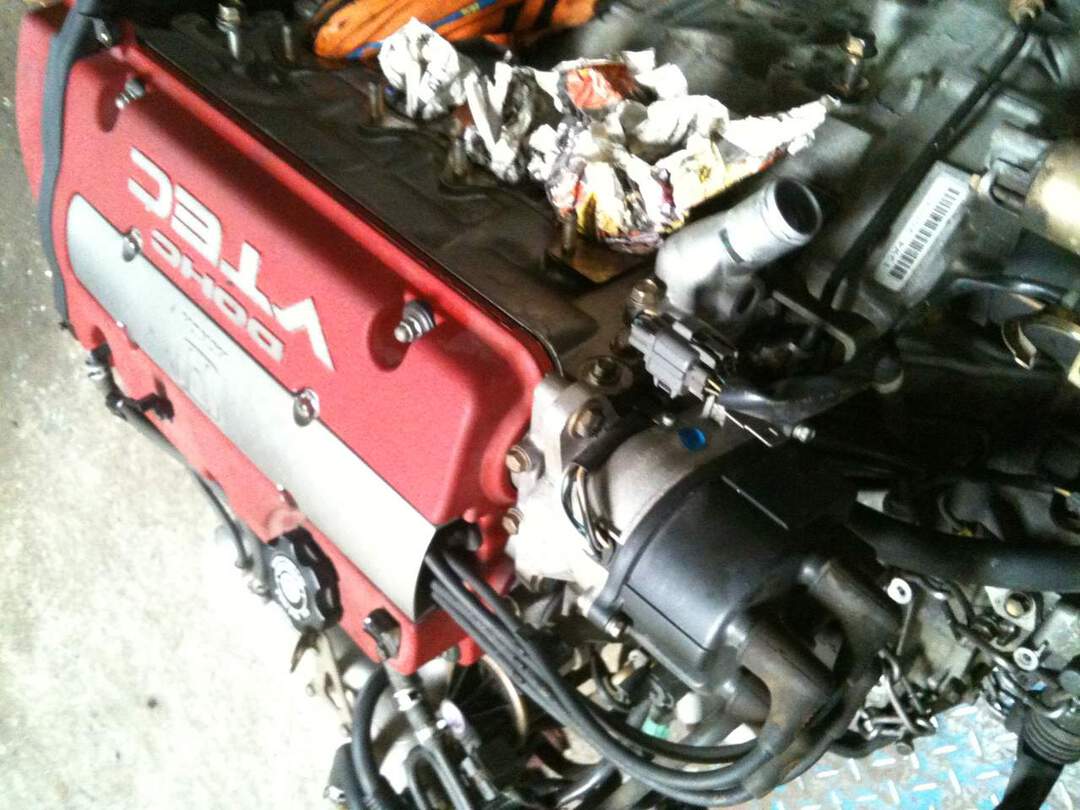

CL1 Euro-R h22a



[ddv_nk12]

oic. i didnt know this. i thought its the same. i think its the same case as civic eg n civic ek. have u already bought the halfcut? if yes, what u plan to do now bro? any pics on the rebuild?



[choon meng]

it is totally different chasis. include the euro-r brake paddle also can not use!!! luckily the clutch paddle + pump still can fit in...



[pretender]

BAD NEWS ...
FROM THOSE PART DISASSEMBLE FROM BOTH CHASIS. IT IS NOTING MUCH ARE COMPATIBLE.
THE THING CAN USED FROM THE EURO R CAN USE IN S84 ARE VERY LITTLE. ONLY THE ENGINE, GEAR BOX DISC BRAKE SYSTEM..
OTHERS MAIN THING LIKE DRIVE SHAFT ALSO CAN NOT USE , MAYBE TO CUSTOM MADE FOR IT!!
ECU ALSO NOT USE, ELECTRIC POWER STEERING SYSTEM CAN NOT USE, SUSPENSION & UPPER LOWER ARM + KNUCKLE CAN NOT USE
CROSSMEMBER + STABILIZER BAR CAN NOT USE
DASH BOARD (OF COURSE) CAN NOT USE
RESTRUCTURE POWER STEERING PUMP..ETC ETC...

Its amazing that so many things are different, maybe u should come out with a list of 'what to do' if there is someone going for a project like urs. Photos of the buildup will help too.



[choon meng]

picture didn't take during the process only before and after...



[choon meng]

comfirm have to custom made a drive shaft for left hd side.....
for those s84 or s86 user who want to up grading to h22a, maybe u can just buy a engine + gb . no need buy a half cut.
then the bigger dics + mt shift + paddle... or just buy a prelude half cut which is much cheaper then euro r !!



[choon meng]

due to the incompatible half cut. so i decide to sell those part which i'm no use. item below and u offer me the price.

http://www.zerotohundred.com/newforums/honda/384952-upgrade-for-accord-s84.html

1.electric power steering + ecu for power steering.

2.engine ecu + wiring.

3.fornt n rear cross member + stable bar.

4.suspendion + absorber.



[ddv_nk12]

bro, survey the price of these items first. then, post it mudah as well. more people visit mudah. good luck in your sales bro.

---------- Post added at 01:47 PM ---------- 6 hour anti-bump limit - Previous post was at 01:46 PM ----------

another tip would be provide pics. i dont know about others but i tend to click on ads that have pics of the items.



[pretender]

due to the incompatible half cut. so i decide to sell those part which i'm no use. item below and u offer me the price.

http://www.zerotohundred.com/newforums/honda/384952-upgrade-for-accord-s84.html

1.electric power steering + ecu for power steering.

2.engine ecu + wiring.

3.fornt n rear cross member + stable bar.

4.suspendion + absorber.

May I know what ECU will u be running then.?



[choon meng]

my machanic rearange the wiring so it can run the engine with prelude or original euro-r ecu. but for some technical isue, the engine check light will light up when use the euro-r ecu. still no test drive yet. will report after every thing is running smooth.
