Anyone using this setup??

[Basilisk]

Anyone using this setup? + need info on CTR TB and IM vacuum connections..

Gday honda guys,
would like to know if anyone is using this kinda setup ?

ECU = PWO / PR3
+
Injectors = Type R/saturated type(ie doesn't require the resistor box)
+
Resistor Box

or

ECU = PWO / PR3
+
Injectors = Type R/saturated type(ie doesn't require the resistor box)
-
Resistor Box



[lightningfield]

any advantages on using those setups? i



[Basilisk]

duno, just that i am converting from JDM b16a OBD0 to a b type-r engine, but i have maintained the wiring n' the OBD0 ecu....
i've connected the type-r hi ohm resistor to the resistor box,
small V injectors are low ohm and uses the peak hold pulse from the OBD0 ecu.
OBD1/2 ecus controls saturated type injectors (ie the one i am using now)

so duno whether this has -ve, 0, or +ve results.



[hattech-v]

i think no need to use the resistor box if u using high impedence injector (tep r)



[Basilisk]

yep this is wht i tot in theory....
but the foreman said will have problem if remove the resistor box.......
i dun really trust foremans.....



[Basilisk]

where r these connected?

i would like to know where are these connected to, TQ. :regular_smile:

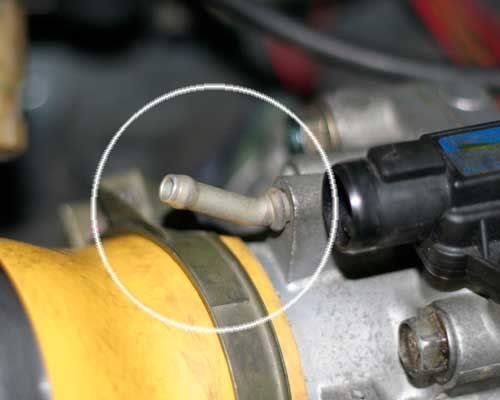

on the CTR TB, beside the MAP sensor, izzit connected to the canister?
foreman said just leave it open like tht...
will it suck in air n' dirty the TB n' IM??

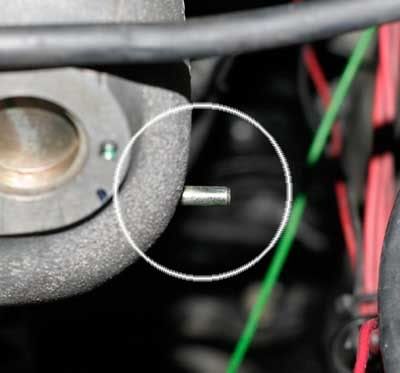

on the end of the CTR IM..
where is this connected to??
i dun mean where could this be connected to in a JDM EF machine.
Wht i wana know is where is this connected to in an EK9 or any EK which have a setup like the EK9. TQ :)



[shiroitenshi]

i would like to know where are these connected to, TQ. :regular_smile:

on the CTR TB, beside the MAP sensor, izzit connected to the canister?
foreman said just leave it open like tht...
will it suck in air n' dirty the TB n' IM??

It's not connected to anything.. the original just have a black hose routed downwards.. like to remove moisture/vapour or something.

The second one, I'm not sure.. have to look in the engine to confirm. looks like the port for the vacuum hose for the fuel regulator.. not sure because can't really see where the thing is at relative to the IM.

Injectors have many names.. even I get mixed up sometimes..

The terms are the following..
L-Jethro, D-Jethro,
High-ohm, low-ohm,
Saturated, peak & hold

Six bloody terms for 2 types of injectors!!!.. I don't really remember them, but the square port is saturated, while the oval ports are usually peak & hold... that's how I remember them.



[Basilisk]

not connected to anything.... hmmmm...


anyone has a workshop manual for the CTR or ITR?? downloadable from the net??



[lightningfield]

hmm this is interesting



[b-eater]

good info ... more info please.



[hattech-v]

its connected to something like bottle below the master brake pump on ek.



[Basilisk]

u mean the outlet on tht TB its to the bottle below the master brake pump??
well i believe tht is the canister....
will check when i get hold of the US B18C5 manual.....



[hattech-v]

not that tb hose. the outlet behind the intake manifold.



[lightningfield]

i dont have that one on my EF tb and intake manifold. heheh



[Basilisk]

tht is taip R TB n' IM ler... urs small V oni....



[akuma]

tht is taip R TB n' IM ler... urs small V oni....

lightningfield,
dok diam diam belajar lar..thn kerja kuat get ur Tap R,okeh?hehehehe.....kuda kepang tempang ku gagah berlari....sbb ku x antar keta pi jeti!haahhahahaha

hattech-v,
i believe its d hose on d TB dats connected 2 d cannister(wats d function actually?i 4got) thinggy...d 1 on d IM i duno...regular big V oso dun haf i think..i know EG dun haf..EF confirm dun haf lar.,...

Basilisk,
if i'm right....both d CTR n stock EF injectors r rated @ 240cc,right?..so,in order 2 safe u sum headache,y not just revert back 2 ur stock injectors since ur still gona run ur OBDO wiring n small V ECU...it'll still perform d same right?dis is wat me n my fren tot whn i told him ur question...



[J101]

what akuma said its true as it points to the purge solenoid valve cylinder then to the charcoal canister bottle. for the type-r version u can either cap it or use it for your FPR vacuum.

hope this helps.



[hattech-v]

J101, what is that charcoal canister bottle function for aa?



[xxxx]

type r injectors not 270cc? someone told me tat's it's 270cc for type r injectors wo. can anyone pls confirm? thanks.



[akuma]

charcoal canister?since whn did Honda created a charcoal-powered engine?ahahha....seriously,wats dat black canister thinggy called?if my memory serves me right,i has sumthg 2 do w releasing d pressure in d fuel line or sumthg like dat.not too sure..wasn't paying attention whn my mechanic talked 2 me..ehhehhehe
